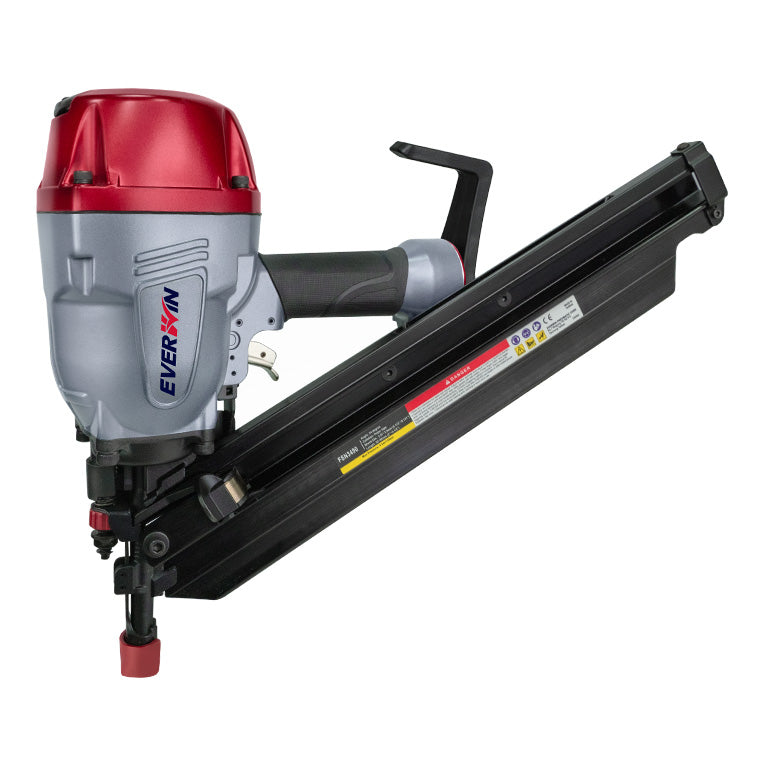

Everwin FSN3490-CT 34 Degree Pneumatic Framing Nailer – High Power Meets High Speed
Everwin FSN3490-CT 34 Degree Pneumatic Framing Nailer – High Power Meets High Speed
Couldn't load pickup availability
California Proposition 65 Warning
The Everwin FSN3490-CT is a PTIA award-winning 34-degree framing nailer that delivers unmatched power, durability, and speed for the toughest jobs. Designed with 1,000 in-lbs. of driving energy, this industrial-grade nailer easily sinks nails into cross-laminated timber (CLT) and other dense materials—on the first go. Whether you're working on off-site construction, framing, sheathing, cladding, or prefab builds, this tool is built for high-volume, high-efficiency performance.
The FSN3490-CT fires 34-degree clipped head and offset paper tape nails from 2" to 3-1/2" and features high-speed operation at up to 13 cycles per second, helping crews move faster with less fatigue. A hardened metal exhaust cover, all-metal magazine, and aluminum housing provide maximum tool life on even the roughest job sites.
With an ultra-compact nose for superior line of sight, a serrated contact arm, and adjustable depth-of-drive, this pneumatic framing nailer is both powerful and precise. It also includes a 46mm wide rafter hook for easy tool hanging between tasks.
Key Features:
- Delivers 1,000 in-lbs. of driving power—ideal for CLT and dense materials
- 13 cycles per second high-speed operation boosts productivity
- Drives 2" to 3-1/2" 34-degree clipped head and offset paper tape nails
- Ultra-compact nose offers better line of sight for accurate placement
- Perfect for framing, sheathing, subfloors, decking, prefab, and cladding
- All-metal magazine and hardened exhaust cover for long-lasting durability
- Adjustable depth control and serrated contact arm for improved control
- Includes a 46mm wide rafter hook for added convenience
Specifications:
- SKU: FSN3490-CT
- Power Type: Pneumatic
- Collation Type: Paper Tape
- Fastener Type: 34° Clipped Head & Offset Paper Tape Nails
- Fastener Length: 2" – 3-1/2"
- Magazine Capacity: 90 Nails
- Operating Pressure: 70 – 120 PSI
- Air Inlet Size: 3/8”-18 NPT or 3/8”-19 PT Male Plug
- Air Consumption: 2.5 SCFM @ 90 PSI
- Firing Type: Contact
- Tool Weight: 7.9 lbs.
- Dimensions (L x W x H): 18.4" x 6.5" x 13.4"
- Housing Material: Aluminum
- Special Features: Ultra-Compact Nose, High-Speed Operation
- Included in Box: Operating Instructions, 46mm Rafter Hook
- Warranty: One-Year Limited
- Made In: Taiwan
Experience framing like never before—get your hands on the Everwin FSN3490-CT and bring unmatched speed and strength to every job site.
