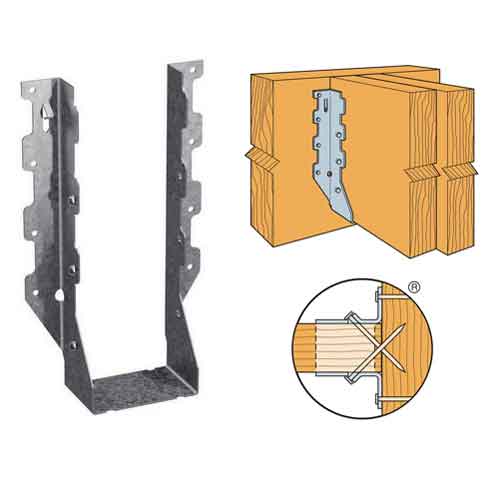

Simpson Strong Tie LUS210-2Z ZMax® 2 x 10/12 Double Shear Joist Hangers have double-shear nailing. This innovation distributes the load through two points on each joist nail for greater strength. It also allows the use of fewer nails, faster installation, and the use of standard nails for all connections. LUS210-2Z Double 2 x 10/12 Hangers are also approved for installation with SD10 Structural Screws.
ZMax® Galvanized Coating Information ZMax® Coating is a thicker coating (galvanized per ASTM A653 with a G185 coating) than the standard hot-dip galvanized coating (galvanized per ASTM A653 with a G90 coating). This thicker coating is available on select Simpson Strong-Tie connectors. Due to this increased galvanized thickness these connectors would be expected to have a longer service life than standard galvanized connectors. Level of Corrosion Resistance: Medium
